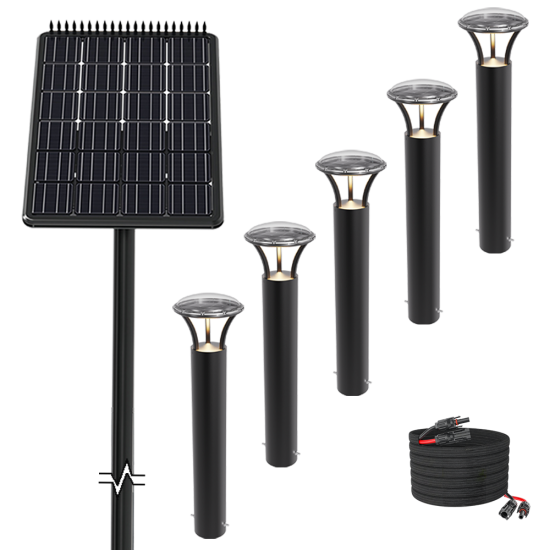

Our semi-bespoke BC15 solar bollard light system is a new concept and is not available anywhere else. It's a very unique solution for applications where individual self-contained, stand-alone solar bollard lights would not be ideal due to the conditions of the installation site. Where shade or partial shade is an issue, a hybrid system is often the perfect solution. Choose from one or more bollard light fittings complete with a remote solar power station to provide hardwired, low-voltage power. Pricing from £999.99.

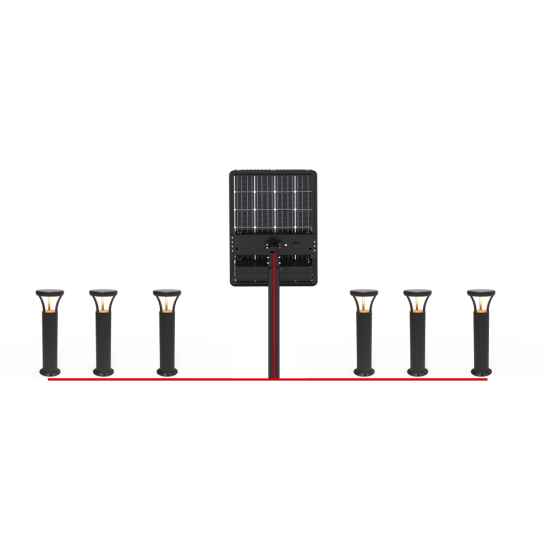

There are many instances where individual, solar powered bollard lights are not an ideal fit due to shade or partial shade at the installation site. This could be from buildings, structures, landscaping or tree canopies. It's a known fact that no solar panel will work properly in the shade, For locations where there is no mains power, shading just creates a further complication. Our BC15 solar bollard light system helps solve this problem because it uses a single solar power system combining both the solar panel, battery and controller within one compact unit. This allows the installer to run one low-voltage cable to one or more of the bollard light fittings, as required. This can be individual cables or daisy-chained into a group. The objective is to site the solar panel where it can receive maximum exposure irrespective of where the bollard fittings need to be. Using low-voltage 24V DC cabling makes the installations easier than running mains power and provides an allowance of up to 100M distance. The project can also be completed without the need for an electrician. This system can be ordered as per the end-user requirements. Multiple bollard lights can be included and connected together on one system. We offer a choice of bollard height and LED power. The system can be preprogrammed to operate as required with single, dual timed or multi-timed operating modes, and the option for dimming for any duration and at any percentage during any of the modes, This allows maximum flexibility. The solar power system is neat and compact. No need for lots of hardware, separate components or a separate battery enclosure. This system is supplied with everything you should need in one simple package. It's a 24V DC system and features a monocrystalline solar panel. We offer a choice of solar panel sizes and wattages depending on the bollard quantity, total LED power, and hours or times of operation. That's because this system is designed and sized accordingly taking several factors into account. Within the solar panel is a very high capacity lithium battery pack that is also sized accordingly. It's housed within a slim, weather resistant enclosure mounted to the underside of the solar panel. The solar power unit includes a tenon mount which is suitable for the top of a 76mm OD column. A surface mount bracket is available instead by special order. The system is pre-programmed prior to dispatch. Options are configured by Solar Illuminations because they are subject to the load on the system, geographic location of the site, and other factors. Supplied as a complete stand-alone system. Colour finish is black.
PLEASE NOTE - THIS IS A SPECIAL ORDER, MADE TO ORDER SYSTEM.
Popular Uses
Perfect for locations where shade or partial shade prevents conventional solar bollard lights from being installed. Otherwise, this self-contained, stand-alone system is ideal for many outdoor applications such as footpaths, car parks, recreational areas, parks, and general locations where low-level amenity lighting is required.
Technical Specifications
Performance
The solar power system is an all-in-one, integrated design.
This is a solar powered, low-voltage, 24V DC system.
Hybrid combination of solar power and low-voltage wired lighting fittings.
Weather rating is I.P. 65
At the time of ordering, this system will be programmed to operate with a choice of one or more modes.
Choice of operational modes include dusk to dawn, a singled timed mode, a dual timed mode or multiple modes.
The option to have the lighting dim, by any percentage, and for any amount of time, may also be available.
Solar Illuminations will program the system to perform as per customer requirements, before the system is shipped.
The programmable options may be determined by the geographic location of the installation site, the quantity of bollard fittings, the total LED power and other environmental factors.
The system features an internal MPPT charge controller.
An optional integrated motion sensor is available by special order.

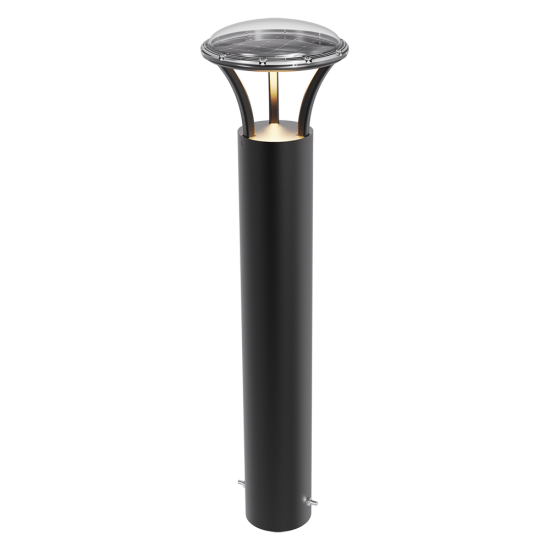

Luminaire
A choice of bollard fittings are available.
Aluminium construction.
IK10 vandal rated version available by special order.
Size (height) options are 60cm, 90cm or 120cm.
Other heights by special order.
Choice of LED power (0.5W, 1W, 1.5W, 2W, 2.5W, 3W, 3.5W, 4W, 4.5W or 5W).
100 to 750 lumens.
Fitted with multiple Osram LEDs.
Choice of LED colour temperature (warm white 3,000k, daylight white 5,000k or cool white 6,000k).
Choice of distribution (Type III or V).
One or more bollards can be included on one system.
The quantity of bollards will determine the total LED power. This, plus the geographic location of the installation site, and the hours or times of operation will then determine the size (wattage) of the solar panel and the size (capacity) of the battery that will be required.
Flange base with pre-drilled holes for installation onto a suitable solid surface.
Expanding anchor bolts included.
Battery
A pre-installed, high capacity lithium battery is included.
The battery is housed within a weatherproof compartment attached to the rear of the solar panel.
Several battery options are available.
The 480W solar panel is fitted with either a 540.4AH, 6,489.6WH or a 270AH, 3,244.8WH battery.
The 320W solar panel is fitted with a 520AH, 6,240WH battery.
The 240W solar panel is fitted with either a 135.2AH, 3,244.8WH or a 67.6AH, 1,622.4WH battery.
The 200W solar panel is fitted with either a 260AH, 3,120WH or a 135AH, 1,622.4WH battery.
The 160W solar panel is fitted with either a 260AH, 3,120WH or a 135AH, 1,622.4WH battery.
The 115W and 100W solar panels are fitted with a 62AH, 748.8WH battery.
The 75W solar panel is fitted with a 52AH, 624WH battery.
The 50W solar panel is fitted with a 41.6AH, 499.2WH battery.
The battery size and capacity is determined by several factors includes the geographic location of the installation site, the quantity of bollards, the total LED power and the hours or times of operation.
The system has built-in charge control regulation with over-charge and discharge protection.

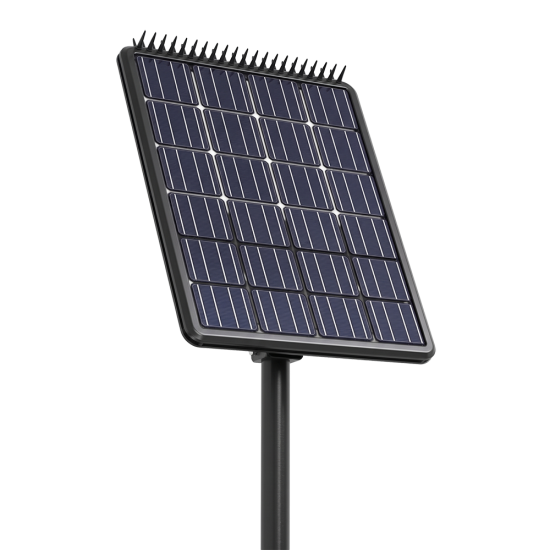

Solar Panel
The solar panel is a bifacial, monocrystalline type.
Aluminium frame with a black powder coated finish.
Choice of solar panel size and wattage with multiple options available.
Solar panel wattage options include 480W, 320W, 240W, 200W, 160W, 115W, 100W, 75W or 50W.
The solar panel size and wattage is determined by several factors includes the geographic location of the installation site, the quantity of bollards, the total LED power and the hours or times of operation.
An automatic PTC heated solar panel option is available by special order (for high elevation/heavy snowfall locations).
An optional bird spike strip is available.

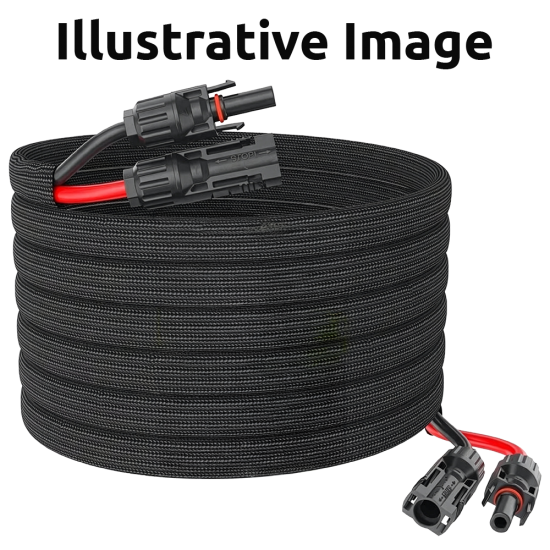

Cable
Low voltage cable for connecting the bollard fittings to the solar power system is not included.
Cable can be ordered, as required and is charged per meter.

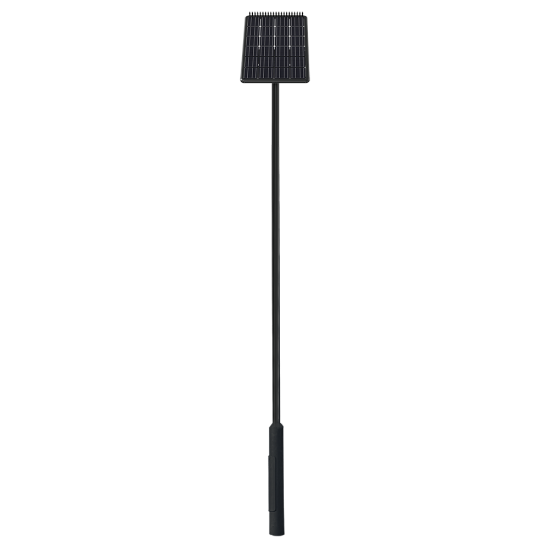

Installation
A choice of mounting hardware is available to suit most applications.
A tenon is supplied allowing installation onto the top of a column (76mm O.D.).
A tenon adaptor is available as an option for other column diameters.
An optional surface mount bracket is available by special order.
Please
Note
This product is a special order and is non-returnable except in
the event of a fault (during its warranty period) when the product, once
returned will be repaired or replaced. The solar panel must be
installed in a location where it can receive full direct sunshine (when
available) and usually set facing South at an appropriate angle (where
adjustment options allow). The solar panel must not be installed in a
shaded or part shaded location and never indoors. The standard
specifications of the system (particularly the solar panel Wattage and
battery capacity) may need to be adjusted. These components are
determined by your geographic location, power consumption (LED Wattage)
and the total amount of hours of illumination time required. Such
changes to the standard specifications may increase or decrease the cost
shown. Please contact us for more information or assistance. The
illumination time is estimated and subject to various factors including
(but not limited to) geographic location, seasons, temperature, weather
conditions & location of product etc. The illumination time of most
solar lights can reduce during winter months when the weather is poor
and the days are shorter. During this time insolation hours decrease
accordingly. Shorter illumination time due to one or more of the above
factors does not define the product as being ‘defective’ or ‘not as
described’. All solar lights must be used in a completely dark location
at night time otherwise they may not illuminate. Nearby strong lighting
sources or ambient lighting may affect the operation of a solar light.
This does not define the product as being 'defective' or 'not as
described'. Please note, if you do not install or use this product for
several months the battery may discharge naturally on its own. By
allowing a battery to deep discharge it may cause irreversible damage as
the battery may then lose the ability to recharge or hold a full
charge. Although unlikely, we reserve the right to supply this product
with any minor alterations or minor changes to the specifications (shown
above by text description or by photographs) due to different supplies
or product batches received, incorporating such product changes made by
the manufacturer, without further notice. Descriptions, specifications
and photographs are updated regularly but may not be current when minor
changes to a product have only recently been made.
