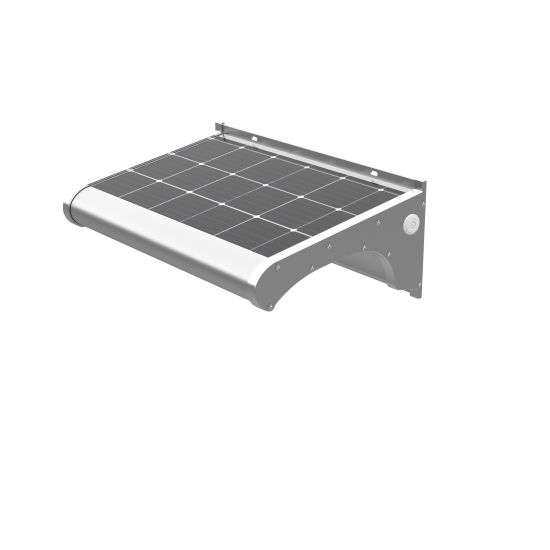

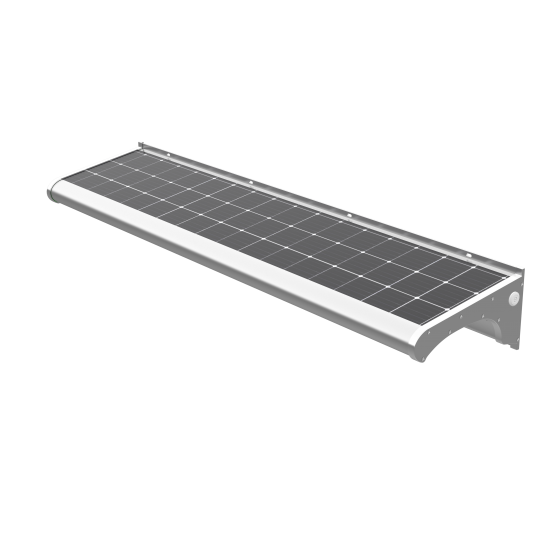

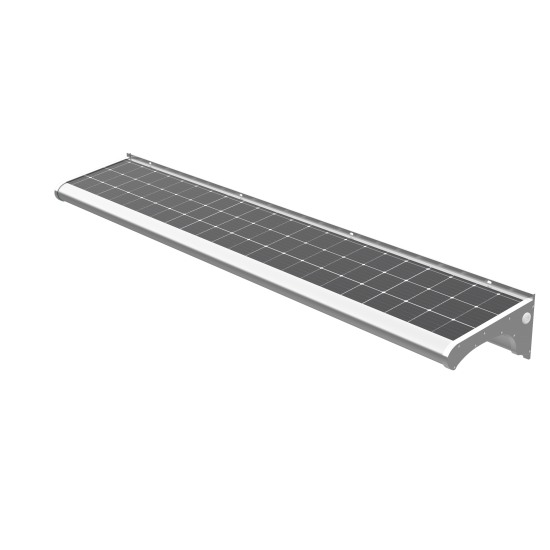

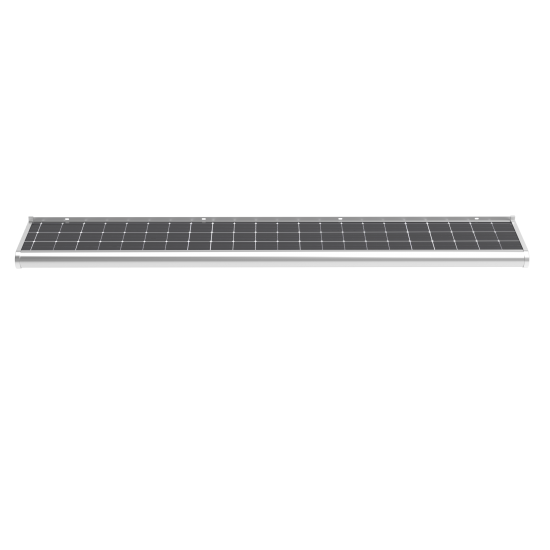

This is a unique, compact, solar powered sign light fitting is a trough design We offer it in four different sizes. Select from small (30cm long) £179.99, medium (60cm long) £239.99, large (90cm long) £319.99, or extra-large (120cm long) £389.99.
This all-in-one, integrated, solar sign light fitting is ideal for smaller sized signs where there is a suitable amount of exposure and where a low profile design is required. Once installed directly above a sign, it will illuminate the sign face below. This self-contained, stand-alone, trough style light fitting features multiple, powerful LEDs, that illuminate automatically at dusk. Fitted with a very high capacity lithium-ion battery this fitting will typically operate for up to a few hours in the evening subject to the location, weather, and seasons, etc. Perfect for street signs, residential address signs, wayfinding and directional signs and small business signs etc. An optional T-bracket is available which allow the fitting to attach to a post, pole or column making it ideal for wayfinding signs, street signs, directional signs, and such like. Colour of product is silver. Colour of light output is white.
Technical Specifications
Performance
Commercial grade, all in one, integrated, trough style design.
Illuminates typically for up to several hours after dusk, subject to several factors.
The small version can illuminate a sign up to approx. 90cm (36”) x 90cm (36”).
The medium version can illuminate a sign up to approx. 120cm (48”) x 120cm (48”).
The large version can illuminate a sign up to approx. 150cm (60”) x 150cm (60”).
The extra large version can illuminate a sign up to approx. 180cm (72”) x 180cm (72”).
XXL version and XXXL version is also available by special order.
Luminaire
Each light is fitted with multiple, super bright, white OsramⓇ LEDs.
Small version has 2W LED power and an output of 400 lumens.
Medium version has 4W LED power and an output of 800 lumens.
Large version has 6W LED power and an output of 1,200 lumens.
Extra Large version has 8W LED power and an output of 1,600 lumens.
XXL version has 10W LED power (2,000 lumens) and XXXL version has 12.5W LED power (2,500 lumens).
LED color temperature is 5,500k (4,000k and 3,000k by special order).
Lumen output ratio is 200 lm/W
Automatic dusk/dawn sensor.
Aluminium construction with polycarbonate lampshade.
Small version is approx. 33cm long x 30cm wide and weighs approx. 2.5kgs.
Medium version is approx. 70cm long x 30cm wide and weighs approx. 4kgs.
Large version is approx. 100cm long x 30cm wide and weighs approx. 5.5kgs.
Extra large version is approx. 134cm long x 30cm wide and weighs approx. 7.8kgs.
XXL version is approx. 160cm long x 30cm wide (9.8kgs) and XXXL version is approx. 190cm long x 30cm wide (11.6kgs).
On/off switch for manual override or storage.
Colour of fitting is silver. Black and other colours by special order and for large quantity orders only.
Battery
Pre-installed, high capacity, lithium-ion battery is included and pre-installed.
Small version is fitted with a 7.4V 2.6AH battery.
Medium version is fitted with a 7.4V 5.2AH battery.
Large version is fitted with a 7.4V 7.8AH battery.
Extra-large version if fitted with a 10.4AH battery.
XXL version is fitted with a 7,4V 15.6AH battery and XXXL version is fitted with a 7.4V 20.8AH battery.
Solar Panel
The solar panel is neatly built into the top of the fitting.
Small version is fitted with a 5.5v 5W polycrystalline solar panel.
Medium version is fitted with a 5.5v 11W polycrystalline solar panel.
Large version is fitted with a 5.5v 13W polycrystalline solar panel.
Extra large version is fitted with a 5.5v 17W polycrystalline solar panel.
Installation
Ensure that the solar panel can receive maximum sun exposure.
Avoid shadows and shaded areas.
Best installed so that the solar panel faces as South as possible.
Easy to install.
Screw or bolt the arm base onto any solid level surface.
Notes
Please Note: This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.
The solar panel must be installed in a location where it can receive full direct sunshine (when available) and set facing South at about a 45-60 degree angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
