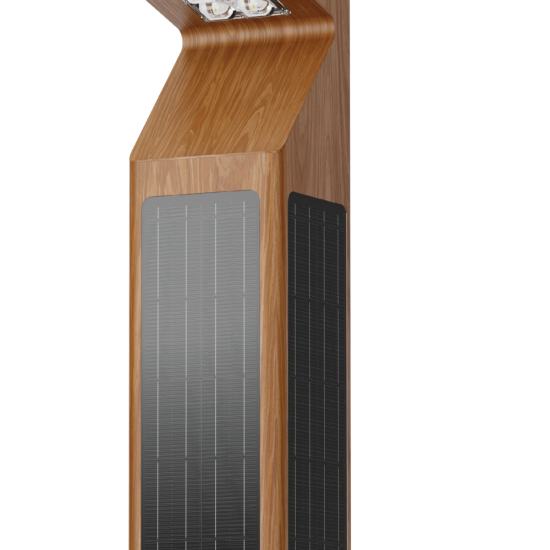

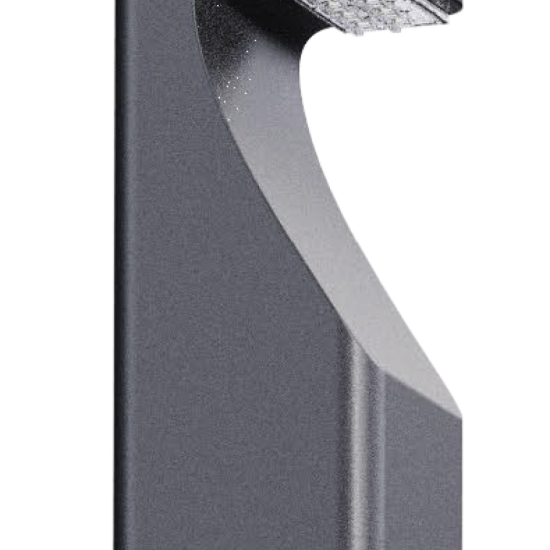

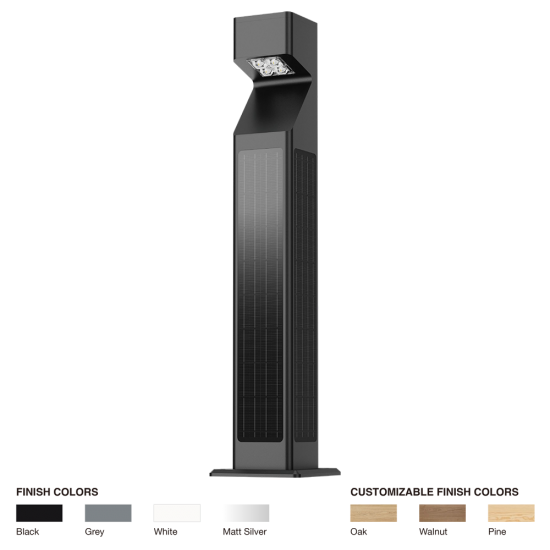

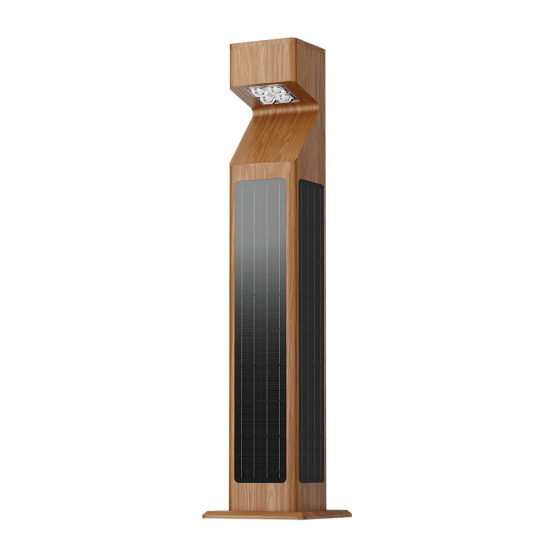

Our BC10 solar powered bollard light is a unique, high quality, professional, commercial grade fitting. This architectural, vandal resistant (IK08 rated) bollard light features a vertical, integrated solar panel, a choice of LED power options, and a choice of different colors and finishes. Prices from £599.99.
This modern, solar powered bollard light is made of cast aluminum. It's vandal resistant and weatherproof (IP68 rated) design offers many features unlike any other solar bollard on the market at this time. It's fitted with multiple, powerful LEDs. There is a choice of two LED power versions, 8W (1,680 lumens) or 12W (2,480 lumens) providing Type III distribution for 180 degree illumination. There is also a choice of LED colour temperatures (CCT) 2,200k, 3,000k, 4,000k, or 6,000k. The large version stands approximately 120cm tall, the medium version stands approximately 100cm tall, and the small version at approximately 80cm tall. This stylish fitting has a sleek, low-profile body of just 16.5cm square. Other heights are available by special order. This bollard also features a pre-installed, large capacity LiFePO4 lithium battery and four vertical solar panels totaling 38W or 54W depending on the height and LED power. An integral MPPT charge control system which enables the light to turn on automatically at dusk and off at dawn. This outdoor solar bollard light is available in a choice of colours and finishes including black, gray, white, silver and also woodgrain effects such as oak, walnut, or pine. Sold as a single unit.
PLEASE NOTE - THIS IS A SPECIAL ORDER, MADE TO ORDER FITTING.
Applications
This architectural solar power bollard light is ideal for entrances, car parks, housing estates. footpaths, driveways and general outdoor spaces, etc. May be used in either a residential or commercial environment.
Technical Specifications
Performance
Anti-theft/vandal resistant design.
Upward light waste ratio (U.W.L.R.) is <1%.
Automatically illuminates at dusk.
Weather resistance rated to IP 68.
Vandal resistant IK08 rating.
All die-cast aluminum construction, no parts to rust.
Choice of powder coated coloured and decorative finishes available.
Black (RAL 9005), grey (RAL 7046), white (RAL 9003), or flat (matt) silver (RAL 9006).
Woodgrain (Woodland) wood effect finishes, oak, walnut, or pine.
Other colours available by special order.
Illumination pattern is approximately 180 degrees with light projected outwards (forwards) and downwards towards the ground.
Light distribution is up to 6M.
Small version is approx. 80cm tall.
Medium version is approx. 100cm tall.
Large version is approx. 120cm tall.
Other heights by special order.
Body section is approximately 16.5 cm x 16.5 cm.
Luminaire
Fitted with 4 super bright, high output, SMD5050 LEDs.
Choice of 8W or 12W LED power.
1,680 or 2,480 lumens.
CRI >76.
Choice of LED CCT (color temperature).
2,200k, 3,000k, 4,000k, or 6,000k.
Full cut-off LED optics.
Battery
Supplied with a pre-installed LiFePO4 3.2V DC 32AH or 60AH lithium battery.
The battery has a typical lifespan of up to 10 years (4,000 cycles).
The battery is replaceable, when required.
Solar Panel
Supplied with four vertical, integrated, monocrystalline 38W or 54W solar panels.
Solar cell efficiency > 22.5%.
Typical lifespan > 20 years.
The solar panels are neatly set into all four sides of the main body of the fitting.
Installation
Easily installed onto almost any horizontal, solid surface such as concrete, tarmac, wood, paving stone, etc.
Installation time is usually less than 5 minutes per bollard.
The internal base section detaches from the main body of the board with special discrete security screws.
The base section has pre-drilled holes for screw-down or bolt-down installation.
The main body of the bollard attaches over the top of the base with a threaded and discrete security bolted connection so that it is complete hidden and inaccessible.
The upper (lampshade) section also has a threaded and discrete security bolted connection to the main body section.
Spacing is at the owner/installer's discretion. Ideally, anywhere from 3M to 10M apart (subject to any specific requirements).
A direct burial (root mount) version is available by special order.
Notes
This product is a special order. Strictly, non-cancellable, non-refundable and non-returnable except in the event of a genuine fault (during its warranty period) where a repair or replacement is provided as per our Returns Policy.
The solar panel must be installed in a location where it can receive full direct sunshine (when available) and set facing South at about a 45-60 degree angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time, insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’ or 'not fit for purpose'. All solar lights must be used in a dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
* View our Terms, Conditions and Polices (including our Returns Policy) for further information.
