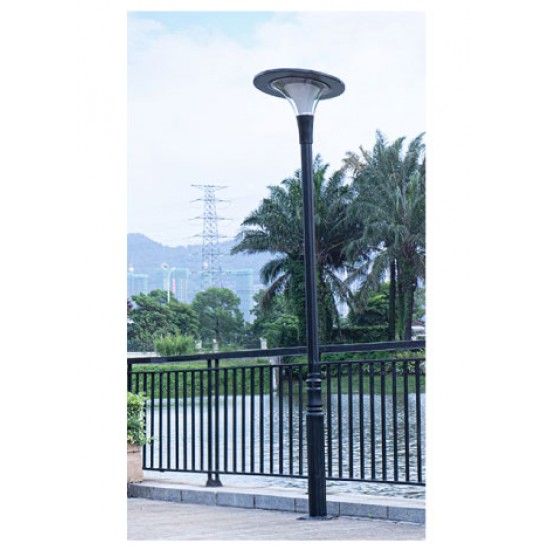

PO40 Solar 18W LED Lamp Post Light (With Column)

This professional, commercial grade lamp post light fitting is ideal for illuminating footpaths, small streets and car parks, driveways, commercial entrances and general open areas. It offers many unique features including programmable modes, light output and option motion sensor integration. Price £699.99.

This solar powered column light fitting features all aluminium die-cast construction with a sleek polycarbonate lampshade. This unique fitting is packed with features and unlike any other solar lamp post light on the market at this time. The LED luminaire is proportionately sized at 43cm high and 58cm diameter, so it's ideal for a 3M or 4M column. Some of its many features include a 18W LED lamp, offering 2,800 lumens using a total of 128 Cree® SMD3030 LEDs. User/installer selectable LED colour temperature choice from 3,000k warm white or 6,000k cool white. There is a pre-installed, integral, large capacity LifePO4 lithium battery within and a 42W monocrystalline solar panel which is neatly built into the top of this fitting. Weather resistant to IP65. It also features an integral MPPT charge control system which enables the lighting to come on automatically at dusk. Programmable options include choice of illumination times (up to 12 hours), choice of LED power (dimmable), and the option to integrate the motion detector. Set-up is via a remote control (included). If the motion sensor feature is selected, lighting will be at 30% output. But upon motion detection, lighting will increase to 100% output for a couple of minutes after motion ceases. The motion sensor can detect up to 8M with an approximate 300-degree angle. In a dark location it’s capable of projecting light outwards and downwards in a diameter of up to several meters. Colour of light output is white. Colour of product is black. Sold as a single unit.

Applications

This solar lamp post light is perfect for entrances, car parks, housing estates. small streets, footpaths and driveways etc. May be used in either a residential or commercial environment.

Technical Specifications

Performance
Automatically illuminates from dusk to dawn (up to 12 hours).
Built-in microwave motion detector which can be enabled or disabled depending on the chosen operating mode.
Programmable features (via the included remote control).
Choice of LED/light output (dimmer option).
Choice of timed modes.
Choice of motion sensor mode with illumination at 30% output and 100% output upon motion detection (until motion ceases). Reverts to 30% output within approx. 2 minutes of motion ceasing.
The motion sensor has a range of up to approx. 8M (26’) and a detection angle up to 300 degrees.
One or more fitting can be matched and grouped to operate from the same remote control (if required).
Net weight is approx. 11.8KG.
Weather resistance rated to IP 65.
Vandal/impact resistance rated to IK10.
Certifications CB, CE, RoHS, LM79, LM80, ISO9001, ISO14001, ISO45001, BSCI, ADQCC approved & AD authorized.

Luminaire
128 No. super bright, high output, white coloured, Cree® SMD3030 LEDs.
2,800 lumens.
18W LED power.
High LED efficiency of 190 lm/W.
CRI >83.
User selectable LED colour temperature 3,000k or 6,000k.
Other LED colour temperature option available (e.g. 3,000k ~ 4,000k) by special order.
All die-cast aluminium construction and polycarbonate lampshade. No parts to rust.
Black powder coated finish (RAL 9011). Grey finish (RAL 7016) by special order.
Other colours available for large quantity orders only (white, brown, green or any RAL colours).
Illumination pattern is approximately 360 degrees with light projected outwards and downwards towards the ground.
Light distribution is up to 8M (26’) diameter (depending on column height).
The main body section of this fitting is approx. 43cm (17") high and a diameter of approx. 58cm (23”).

Column
A choice of 3M, 4M, 5M or 6M column.
Choice of root mount (direct burial) or flange mount (surface) type base.
Standard columns are galvanised steel, tubular, 76mm OD.
The root mount column is supplied with an additional 750mm to 1000mm for burial.
The flange mount column is supplied with an anchor kit and template.
A heavy-duty columns of 89mm and 114mm diameter is available by special order and at extra cost.
Other column heights are available by special order.
An unpainted, galvanized steel (grey/silver) finish is supplied as standard. A black, painted finish is available as an option, for an additional charge.
Coloured painted or powder coated finishes are available by special order.

Battery
Supplied with a pre-installed LifeP04 32700 6,000mA 3.2V lithium battery.
The battery capacity is 154WH 12.8V DC.
The battery has a typical lifespan of up to 10 years (6,000 cycles)
The battery is replaceable, when required.
Working temp. -20 deg. C ~ +70 deg. C.
Typical charge time is up to 4 hours.
Typical discharge time is > 24 hours.
Autonomy is up to 2~3 days (or up to 5 days in PIR/motion detector mode)..

Solar Panel
High quality, integrated, monocrystalline 42W 18V solar panel.
Solar cell efficiency > 22.5%.
Typical lifespan > 20 years.
The solar panel is neatly set into the top section of the light fitting and protected by clear tempered glass.

Installation
Easily installed onto the top of a 76mm (3”) OD column or round post.
Fitting to alternative sized columns (e.g. 89mm) is possible with a tenon adapter or spigot (available as an option).
Installation time is typically less than 5 minutes per fitting once a column is in place.
Spacing is at the owner/installer's discretion.

Notes
This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.

The solar panel must be installed in a location where it can receive full direct sunshine (when available) and set facing South at about a 45-60 degree angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor, and the days are shorter. During this time, insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’ or 'not fit for purpose'. All solar lights must be used in a dark location at night-time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications, and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
