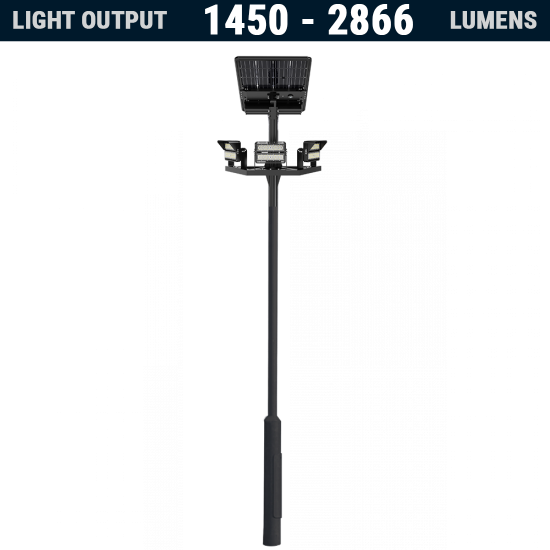

SL71 Solar 50W-250W LED Area Light System (With Column)

SL71 Solar 50W-250W LED Area Light System (With Column)
SL71 Solar 50W-250W LED Area Light System (With Column)
SL71 Solar 50W-250W LED Area Light System (With Column)
SL71 Solar 50W-250W LED Area Light System (With Column)
SL71 Solar 50W-250W LED Area Light System (With Column)
SL71 Solar 50W-250W LED Area Light System (With Column)
SL71 Solar 50W-250W LED Area Light System (With Column)
SL71 Solar 50W-250W LED Area Light System (With Column)
SL71 Solar 50W-250W LED Area Light System (With Column)
SL71 Solar 50W-250W LED Area Light System (With Column)
SL71 Solar 50W-250W LED Area Light System (With Column)
SL71 Solar 50W-250W LED Area Light System (With Column)
SL71 Solar 50W-250W LED Area Light System (With Column)

This completely unique, professional, solar powered LED area lighting system has been designed for use in a variety of different applications. As a commercial grade systems, its primary purpose is to provide full power, high output lighting for short periods of time or alternatively, operate via an optional PIR motion sensor. This feature-packed lighting system offers lots of different options and can be designed and configured accordingly. This system can be supplied with a single or pair of 160W bi-facial monocrystalline solar panels. There is the option of one, two or three LED luminaires each offering 50W to 250W of LED power. The LED power can be configured for the particular application, its location and the desired nightly illumination time. Each LED luminaire is fitted with a type II or III optical lens allowing for the correct distribution type. Each luminaire features multiple high-power Philips 5050 LEDs which provide a very high lumen per watt ratio (200 lm/w). The LED colour temperature is 6000k daylight white as standard, but other colour temperatures are available (e.g. 3000k warm white). This state-of-the-art system can be ordered with a nightly illumination time to suit, all controlled by an internal MPPT charge controller. Other options include the integration of a PIR sensor with up to a 20M range, adjustable ‘light-on’ timer, and the option to dim the lighting for a chosen number of hours and/or percentage. Dual brackets and triple brackets are available for the luminaires and an internal heater system for the solar panels and bird spikes are further options available. Using the latest LED technology, this is the most powerful, professional solar powered LED area lighting system available in the UK and its only available from us. The system comes with a pre-installed, high-capacity lithium batteries from 12V 72.8AH to 12V 540.8AH providing 873.6WH to 6,489.6WH. In addition, it features the very latest in solar panel technology with a bi-facial array that increases efficiency by up to 23%. Colour of system is black. Colour of light output is white. Price from £1,499.99


This solar lighting system can be used for all kinds of applications. Car parks, sports courts, parks, recreational grounds, riding arenas, multi-use games areas (MUGA), BMX pump tracks, commercial yards, storage compounds, industrial sites, perimeter security, playgrounds, tennis and basketball courts, manège, equestrian & dressage facilities, etc. as well as general outdoor areas that require high power solar lighting.

Technical Specifications

Unique, compact, all-in-two, integrated (split-type) design LED area light fixture.
High quality aluminium alloy and full die-cast aluminium construction.
Black finish. Other colours by special order.
304 Grade stainless steel hardware.
Automatic detection of day and night.
Corrosion resistant and wind resistant design.
Weather rating is I.P. 65
Certified ISO9001:2015 Quality Assured
Meets internal standards ISO14001, IEC61215, IEC61730, CE, RoHS, FCC, TUV and SGS.
Choice of pre-programmed operation mode.
Option to include a PIR motion sensor.

This system can be supplied with one, two or three LED luminaires.
Fitted with Type III optics as standard.
Type II optics are available as an option.
The luminaire is fitted with multiple Philips 5050 LEDs which have a colour temperature of 6000k.
Other LED colour temperatures are available by special order including 3000k warm white.
High luminous efficiency LEDs up to 200lm/w.
Choice of LED power from 50W to 250W.
Dimming available to allow any LED power from 1W to 250W.
Standard luminaire versions are 50W, 75W, 100W, 150W, 200W and 250W.

All versions incorporate an internal high capacity Lithium (LiFePO4) battery pack which is pre-installed.
Several battery options are available.
12V 72.8AH (873.6WH).
12V 83.2AH (998.4WH).
12V 104AH (1,248WH).
12V 135.2AH (1,622.4WH).
12V 270.4AH (3,244.8WH).
12V 540.6AH (6,489.6WH).
Battery lifespan is up to 8 years.
Battery is easily replaced when required.
An integral MPPT charge controller is included and pre-installed.
The MPPT charge controller is up to 30% more efficient than standard PWM controllers.
The MPPT controller features ASW3.0 processing to allow for different weather and climates
The system has built-in charge control regulation with over-charge and discharge protection.
Optional smart interface available allowing GPRS/3G/4G/5G remote management and networking for operational monitoring, control adjustments, data analysis etc.

Solar Panel
Supplied with a single or dual configuration aluminium framed, bifacial, monocrystalline, 160W solar panel.
Bifacial technology can improve solar panel efficiency by up to 23%.
The solar panel size (Wattage) is determined by several factors, including geographic location, LED power/consumption, and/or illumination time and modes required.
The solar panels are sized appropriately for winter conditions in the UK and may vary depending on the installation site and location.
Each solar panel is approximately 106cm x 80cm.
The solar panel mounting bracket is supplied in a single or dual format depending on the quantity of panels supplied.
360 degree rotation and tilt capabilities.
The solar panel should face as south as possible, set at the correct tilt/angle, and not be exposed to any shade or part shade during the day.

Choice of 3M, 4M, 5M or 6M column.
Column diameter is 76mm, 89mm or 114mm.
Column type is galvanised steel, root mount (direct burial).
The 3M and 4M root mount column has approx. 75cm for burial.
The 5M and 6M root mount column has approx. 100cm for burial.
Heavier duty columns are available with 89mm or 114mm diameter.
Flange mount columns for surface type installations (complete with anchor kit and template) are available at extra cost.
Painted or powder coating coloured finishes are also available at extra cost.
Alternative column heights are available by special order.

The weight of the complete system will be between 20KG and 70KG depending on the configuration of the system.
The system can include a dual or triple mount support bracket depending on the quantity of luminaires required.
Suitable for column mounting only.
Column must be 76mm, 89mm or 114mm outside diameter (OD).
Other column diameters and types may be acceptable with the use of a tenon (not included, but available by separate order).
This system is designed for quick and easy installation.

Please Note: This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.

The solar panel must be installed in a location where it can receive full direct sunshine (when available) and set facing South at about a 45-60 degree angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at nighttime otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
