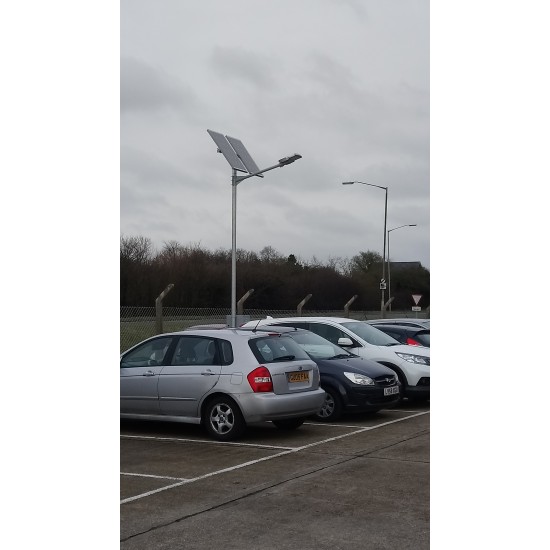

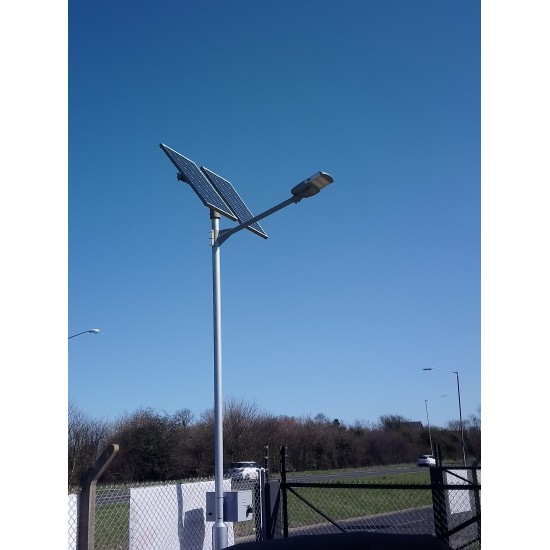

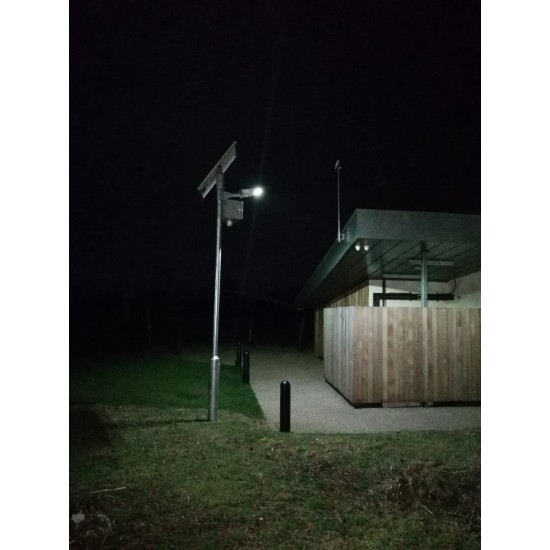

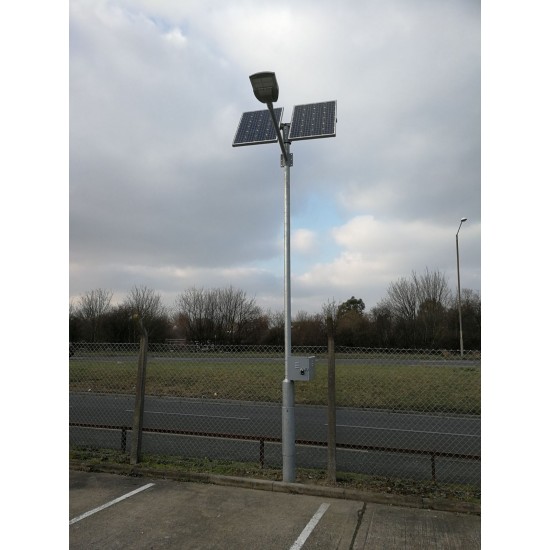

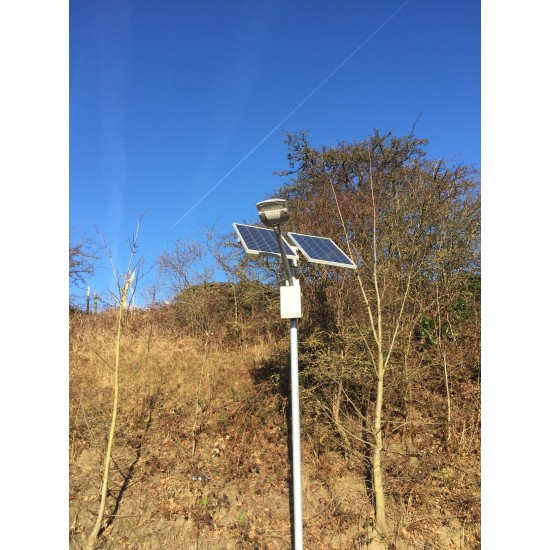

This commercial grade, solar powered LED lighting system is perfect for lighting up streets, car parks and public area. Supplied with a powerful 10W (1450 Lumens), 15W (1904 Lumens) or 20W (2866 Lumens) LED luminaire. It is the most competitively priced you will find anywhere. Supplied as a complete system with bespoke options also available.
This a complete, professional LED lighting system that is ideal for illuminating streets, car parks, open areas, public spaces, parks, footpaths and such like. It is designed to mount on an existing column or to a solid vertical surface such as a wall or to the side of a building or structure. We offer several options for the lamp power, solar panel wattage, and battery capacity. Your selection will be dependent upon the lamp power you desire, and how you expect the light to perform. We can size a system to illuminate dusk to dawn throughout the year, or allow for up to a certain amount of hours of illumination. For assistance on determining what options will be necessary for your application, please contact our sales team. Supplied as a complete system including a powerful LED luminaire fitted with multiple Philips LEDs which have a lifespan of up to 100,000 hours. The luminaire attaches to a support arm that then attaches to the column or to a vertical surface. The system is supplied with a metal lockable battery box which is installed usually between half way and towards the top of the column. The battery box houses two large 12 volt rechargeable batteries (not supplied). The battery capacity is sized to the system specifications, geographic location and site requirements. A selection of different solar panels (from 90W to 360W) are available. The solar panel Wattage will be determined by the LED power, geographic location and the illumination time required. The solar panel attaches to the top of the column with its supplied hardware. An alternative solar panel mounting kit can be supplied at no extra cost for vertical surface mounting (onto a wall or building etc.). Alternative solar panels wattages are available and are sized to the system specifications, geographic location and site requirements. The system is supplied with a pre-programmed MPPT charge controller which uses the very latest smart technology. The MPPT controller is housed inside the battery box. The controller can be programmed so that the light will come on automatically at sunset and illuminate until dawn. In the winter this can be as much as 16 hours illumination time. The MPPT controller offers many choices and is programmed to operate the light as per your requirements. Please call us to discuss all the options that are available. The following examples are just some of the options available. It can be set to run dusk till dawn, or run as a single timed mode for a X amount of hours after sunset (from 1 to 16 hours). It can also be programmed to run in a dual timed mode so that it automatically comes on for X amount of hours after sunset, switches the light off, then switches it back on again for X amount of hours before sunrise. Further options include lighting levels at 100% brightness or reduced lighting levels for any amount of time. This means it can be set to dim to any percentage, for any amount of time during the night, usually between a single or dual time mode of 100% brightness. This power saving feature means that (if required) only 100% brightness is provided during the hours it is necessary and a reduction in brightness between these times when maximum illumination is not necessary. Optional motion sensing (with one or more PIR detectors) is also available, if required. Standard colour of luminaire is silver/grey. Colour of light output is white.
It is perfect for lighting up small streets, footpaths, parks, open areas, playgrounds, public areas, small car parks, private communities and developments, housing estates, entrances and such like.
Sold as a complete, professional, commercial grade system.
Manufactured in an ISO9001:2008 'Quality Assured' facility.
Operating voltage is 24 V. DC.
Special control system to prevent over-charging and over-discharging.
Illumination time is programmable for dusk to dawn, single timed mode or dual timed modes (subject to system specifications, geographic location and site requirements).
Manufactured in an ISO9001:2008 'Quality Assured' facility.
Supplied with a single, high performance, high specification LED luminaire.
Low profile weatherproof design with minimal wind resistance.
Features a fully adjustable tenon which can rotate 90 degrees at 15 degree intervals.
The lamp is configured with a single LED module containing 14 powerful Philips LEDs.
The LED module is removable and replaceable, if required.
Can be supplied with type I, II, III or V lighting distribution patterns.
The distribution pattern will be determined by the site or customer requirements.
Choice of LED colour temperature (yellow, warm white, white or cool white).
White (5700K) is the supplied colour temperature, as standard.
Other LED colour temperatures by special order only.
Yellow is offered as a choice of 3000K (nominal CCT).
Warm white is offered as a choice of 4000K (nominal CCT).
White is offered as a choice of 5000K or 5700K (nominal CCT).
Cool white is offered at 6500K (nominal CCT).
Lumen tolerance +/- 5%.
The 10 Watt lamp unit provides approx. 1450 Lumens of light output (with white LEDs).
The 15 Watt lamp unit provides approx. 1904 Lumens of light output (with white LEDs).
The 20 Watt lamp unit provides approx. 2866 Lumens of light output (with white LEDs).
LED Wattage is energy consumed and not a measurement of light output.
Bespoke options available for LED Wattage and Lumen output.
Other LED power outputs / Lumens are available from 1 Watt to 20 Watts, as per your requirements or as per the design and specifications of the system.
Optional dimming is available at any time during the illumination time, if required.
LED life is typically up to 100,000 hours or equal to about 22 years.
This luminaire attaches to the support arm which in turn attaches to the column.
Anodized aluminium construction with toughened glass.
Silver/grey coloured finish.
Black/silver coloured finish by special order.
Stainless steel hardware.
IP65 weather rating.
LED beam angle is 140 deg. (horizontal) x 65 deg. (vertical).
CRI is >75.
The luminaire will typically incorporate a Meanwell LED driver.
Certifications CE, FCC, RoHS, TUV, CCC, CQC, UL.
This luminaire is approx. 43cm x 31cm x 13cm (17" x 12.5" x 5.5") L x W x D.
Tenon internal diameter is approx. 6cm (2.4").
Two 12 Volt 18 Amp-Hour, 34 Amp-Hour, 55 Amp-Hour or 88 Amp-Hour sealed lead acid, AGM or GEL type rechargeable batteries are required (not included).
Battery capacity is determined by the system specifications, geographic location and site requirements.
Batteries are available as an option.
A galvanized steel support arm is supplied (to attach the lampshade to a column).
Can be ordered for retro-fitting to an existing pole or post.
A wall mount bracket is available by special order.
Silver/grey colour finish.
Bespoke colours by special order only.
The support arm is supplied with hardware to allow it to clamp around a round column or various diameters.
Galvanized steel lockable battery box will accommodate the rechargeable batteries.
Padlock not included.
Supplied with hardware to enable it to clamp around the pole and be positioned almost anywhere on the column.
Silver/grey colour finish.
It is approx. 53cm x 38cm x 20cm (21" x 15" x 8") L x W x D.
Bespoke colours by special order only.
A polycrystalline solar panel is included.
The solar panel wattage will be between 90W and 360W and is determined by the power consumption of the luminaire, geographic location and the illumination time required.
Alternative solar panel wattages are available and may be required due to system specifications, geographic location and site requirements.
Aluminum frame with anti-aging and encapsulated.
Low reflecting tempered glass.
Solar panels are may be supplied in a dual format (2 x 70w = 140w) or in single format (1 x 140w).
Typical solar panel life is approximately 20-25 years subject to environmental factors.
Supplied with a MPPT charge controller which automatically controls the solar panel power, battery charging and lighting function and operation.
Ultra fast Maximum Power Point Tracking (MPPT).
The MPPT charge controller is typically 30% more efficient than standard PWM controllers and 10% more efficient to most other MPPT controllers.
Additional efficiency for cloudy weather and during times of reduced sun radiation.
This controller features the very latest smart technology.
Provides extended battery life and extra protection against excessive battery discharge and overcharge.
Battery life algorithm operates 24/7.
Low voltage detection for automatic disconnect.
Continuous environment, input and output power management.
The controller is sized to the system specifications with 10A and 15A versions available (subject to solar panel wattage and battery capacity).
Pre-programmed software for load output, dusk to dawn lighting, single timed lighting, dual timed lighting, dimming option and the ability of interfacing with motion detection, where required.
This MPPT charge controller is programmed by Solar Illuminations as per your requirements and system ability.
Lighting control features illumination from dusk to dawn (where applicable), or on at dusk for X amount of hours then off, or on at dusk for X amount of hours, then off, then back on again for X amount of hours before dawn.
Dimming option (where applicable) allows the lighting to dim at any time during the illumination time.
The dimming option or any other illumination mode can be used in conjunction with motion activation (where applicable).
Dimming may be at any percentage from 1-99%.
Supports real time data monitoring (iPhone, Andriod, Mac or PC) with optional interface and/or Bluetooth dongle.
Battery voltage 12/24v dc auto select.
Rated charge current 10A/15A.
Maximum PV power (12v dc) is 135W at 10A and 200W at 15A.
Maximum PV power (24v dc) is 270W at 10A and 400W at 15A.
Maximum PV open circuit is 75v dc.
Peak efficiency is 98%.
Charge voltage (absorption) is 14.4v dc.
Charge voltage (float) is 18.8v dc.
Multi stage adaptive charge algorithm.
Automatic temperature compensation.
Low voltage load disconnect at 11.1v dc to 11.8v dc (12v dc system) or 22.2v dc to 23.6v dc (24v dc system) or battery life algorithm.
Low voltage load reconnect at 13.1v dc to 14v dc (12v dc system) or 26.2v dc to 28v dc (24v dc system).
Protection feature includes battery reverse polarity (fuse), output short circuit and over temperature.
Operating temperature is -22 deg. F (-30 deg. C) to 140 deg. F (+60 deg. C).
Humidity up to 95%, non condensing.
Power terminals are AWG 10 (6mm2).
Protection rating IP22 (connection terminal area).
Weight is 500g (1.1 Lbs).
Dimensions are approx. 4” x 4” x1.5” (10cm x 11cm x 4cm).
Please note: Upon installation and power-up the controller goes into a 7 day evaluation mode where smart monitoring and configurations commence. Additional evaluation with self-managing adjustments may continue for up to 7 more days. This is all part of the smart feature that enables this intelligent controller to understand its use, the application, the surrounding environment and the current conditions. During this time some of its programmed features may differ temporarily. This is a perfectly normal process and must be accepted during that time. During this time the controller will adjust to the current condition and charge status of the batteries. It is therefore recommended that all batteries are 100% fully charged before connection using an appropriate battery charger. This may significantly reduce the evaluation mode time of 7+7 days to much less. The solar panel(s) should be connected to the MPPT charge controller first, followed by the fully charged batteries.
Connection wiring between the battery box, solar panel and lamp unit is included.
Installation guide included.
Please Note: This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.
The solar panel must be installed in a location where it can receive full direct sunshine (when available) and set facing South at about a 45-60 degree angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
* View our Terms, Conditions and Polices (including our Returns Policy) for further information.
|Solar Lights Data|
|Lumen Output||Up to 2866 Lumens.|
|Equivalent Incandescent Wattage||Up to approx. 300 Watts.|
|Approximate Illumination Time||Up to dusk to dawn.|
|Approximate Illumination Area||Up to approx. 25m x 25m.|
|Solar Panel Wattage||From 90 Watts.|
|Battery Included||No (available as an option).|
